Solar Powered Variable Message Sign with 2 Years Warranty and 310W Average Power Consumption for Highway Roadxpressway

Name: Solar Powered Variable Message Sign with 2 Years Warranty and 310W Average Power Consumption for Highway Roadxpressway
Brand: SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD
SKU: GLG-TDL-160F
Price: 125.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Glare-LED

Model Number: GLG-TDL-160F

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $115-135

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                2 Years Warranty Variable Message Sign, 310W Average Power Consumption VMS LED Display, 3906 dot/m2 Pixel Density Traffic LED Display


Pixel Pitch:	16mm	Pixel Composition:	1R1G1B
Power Consumption:	310	Pixel Density:	3906 Dot/m2
Brightness:	12000	Viewing Distance:	250-300m
Refresh Rate:	>120Hz	Panel Size:	1024*1024
Waterproof Level:	IP65	Operating Temperature:	-40ºC~+75ºC
Operating Humidity:	5%-95%	Insulation Resistance:	>100MΩ
High Voltage Test:	1500V AC For 1 Minute	Contact Resistance:	<0.1Ω
Life Span:	100,000 Hours

Pixel Pitch:	16mm
Pixel Composition:	1R1G1B
Power Consumption:	310
Pixel Density:	3906 Dot/m2
Brightness:	12000
Viewing Distance:	250-300m
Refresh Rate:	>120Hz
Panel Size:	1024*1024
Waterproof Level:	IP65
Operating Temperature:	-40ºC~+75ºC
Operating Humidity:	5%-95%
Insulation Resistance:	>100MΩ
High Voltage Test:	1500V AC For 1 Minute
Contact Resistance:	<0.1Ω
Life Span:	100,000 Hours

Product Description

LED Solar Powered Traffic Safety Variable Lane Control

Glare-LED variable message signs and traffic guidance equipment provide traffic information dissemination through LED lighting displays. These devices serve as the basic traffic information display unit with graphics and text capabilities. Operators can release various notices and information based on traffic instructions, weather conditions, and dispatch department requirements, effectively guiding traffic flow, improving road network capacity, and enhancing driver safety.

Product Features

Versatile and interchangeable display modules can be configured in different colors and sizes
Double-box structure creates natural convection for temperature equilibrium
Pixel module junction box with "O" ring provides excellent moisture resistance
Advanced soft silicone packaging offers elasticity and strong anti-aging properties
Heat sink cooling for power supply and IC devices ensures stable performance
Wide temperature range components guarantee operation in extreme conditions
High-speed serial transmission network reduces complexity and improves stability
Network cable data transmission minimizes internal wiring and enhances reliability
Common network data transmission technology improves display gradation and compatibility

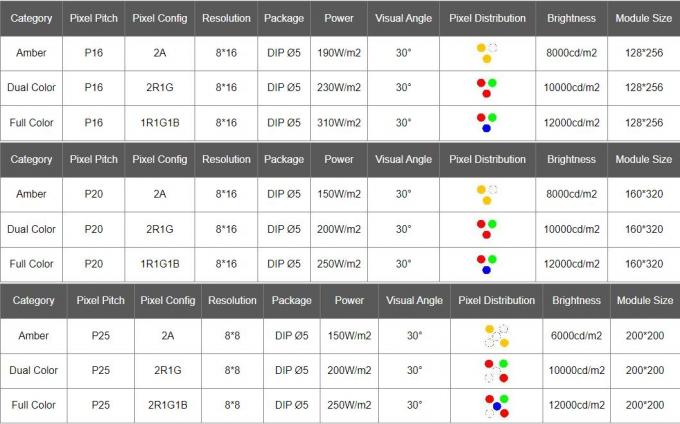

Product Parameters

Lamp beads	Specific traffic lighting LEDs
Pixel pitch	P16, P20, P25, P31.25, P33.33
Display dimension	Customizable
Cabinet material	Aluminum or cold rolled iron
Chip color	Amber, tri-color, full color or custom
Brightness	>10000cd/m²
Brightness adjustment	Manual or auto adjust
Viewing distance	250-300m
Control mode	Asynchronous control
Communication port	RS232/RS485/RJ45/GPRS/3G etc
Refresh rate	>120Hz
Certificates	CE/FCC/ROHS etc
Life span	100,000 hours
Rate of dot out of control	<1/10000
Insulation resistance	>100MΩ
High voltage resistance test	Withstands 1500V/50Hz AC voltage for 1 minute without breakdown
Impact resistance test	Pass
Vibration resistance test	Pass
Contact resistance	<0.1Ω
Protection class	IP65
Operating Humidity	5%-95%
Operating temperature	-40ºC to +75ºC
Power supply	AC220V±18%/50Hz±10% or AC380V±18%/50Hz±10%

Product Configuration and Implementation Standards

Name	Specification	Function
Control system	Main control system	Communicate with the center of the screen drive traffic monitoring
Brightness adjust system	Brightness adjustment based on ambient light	Traffic control system screen brightness
Power system	Power distributor	Centralized power system distribution box
Power lightning protection devices	Imported professional lightning protection devices	Protection against power surges
Signal lightning protection devices	Signal protection devices	Protection for communication signals
Remote Switch electrical system	Remote Switch electrical system	Remote, step-switch function
Communication module	RS-485 communication module	Industrial grade communication module
RS-232 communication module	RS-232 module	Standard serial communication
Ethernet communication module	Ethernet module	Network communication capability

LED variable message signs screen standards	Standard	Description
LED variable message screen	GB/T 23828-2009	Fully in accordance with international design, production and testing
Traffic sign display	GB 5768.2	Traffic sign text, graphics meet the standards
Chinese character display	GB 2312	Digital display standard Chinese characters
Shell protection grade	GB 7000.1	IP65 protection rating
Communication interfaces and protocols	JT/T606.1 and JT/T606.3	Standard asynchronous communication
