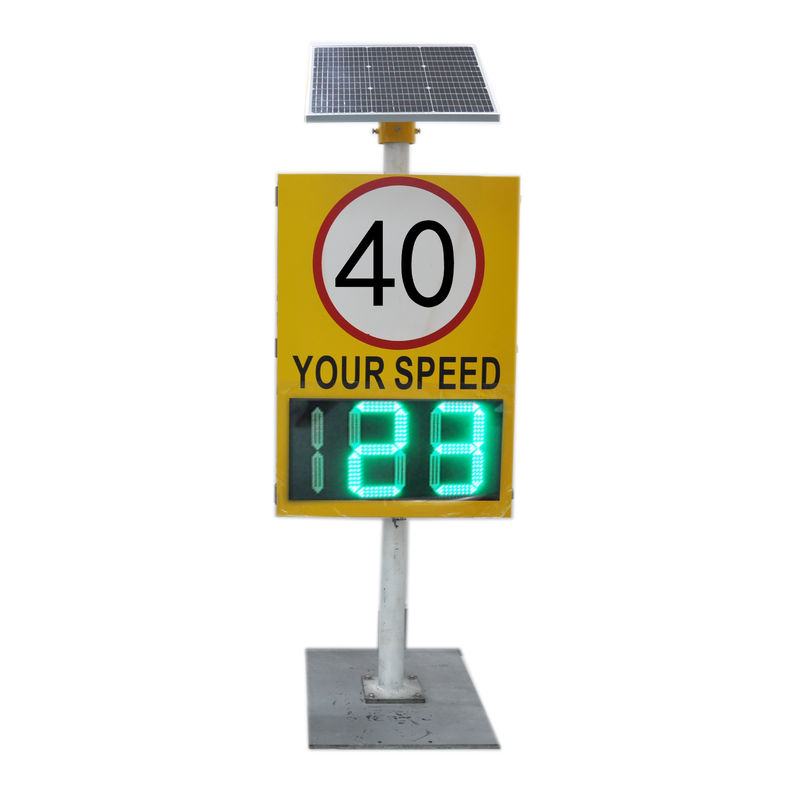

600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs

Product Details

Place of Origin: Guangdong, China

Brand Name: Glare-LED

Model Number: GLG-TSP-188RG

Payment & Shipping Terms

Price: Negotiable

Get Best Price
Product Details
Highlight:

600x1000 Radar Traffic Signs

,

600x1000 Solar Radar Speed Limit Sign

,

LED Radar Traffic Signs

Application:
Urban Roadxpressway
Type:
LED
Color:
Single Color/Dual-color
Panel Size:
600*1000, 600*1000
Supplier Type:
Original Manufacturer
Media Available:
Datasheet, Photo
Use:
Urban Roadxpressway T
Pixel Pitch:
Other, Other, 188(3 Digitals)
Specification:
600*1000
HS Code:
8531200000
Resolution:
600*1000
Waterproof Level:
IP65
Viewing Angle:
≥30°
Brightness:
≥10000 CD/㎡
Driving Mode And IC:
Static Constant Current
Height:
12inch/13.4inch
Speed Range:
0~300KM
Detect The Distance:
10~100M
Input Voltage(AC):
220V
Peak Power(W/㎡):
50W
Application:
Urban Roadxpressway
Type:
LED
Color:
Single Color/Dual-color
Panel Size:
600*1000, 600*1000
Supplier Type:
Original Manufacturer
Media Available:
Datasheet, Photo
Use:
Urban Roadxpressway T
Pixel Pitch:
Other, Other, 188(3 Digitals)
Specification:
600*1000
HS Code:
8531200000
Resolution:
600*1000
Waterproof Level:
IP65
Viewing Angle:
≥30°
Brightness:
≥10000 CD/㎡
Driving Mode And IC:
Static Constant Current
Height:
12inch/13.4inch
Speed Range:
0~300KM
Detect The Distance:
10~100M
Input Voltage(AC):
220V
Peak Power(W/㎡):
50W
Product Description

600*1000 Size Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs

600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs 0
Products Overview
600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs 1
>> LED radar speed signs made in 2 or 3 7 segment digit, can set the limit speed number by remote controller. Inform the driver
limit speed: show green number in limit speed and show red number out of limit speed.
>> When the vehicle drive into the radar detection area (about 100m in the front of radar sign), the microwave radar will
automatically detect the speed of the vehicle and the speed will be displayed in the sign to remind the driver to reduce driving
speed, which Effectively reduce the road traffic accidents caused by high speed driving.
>> Speed feedback device has a significant eye-catching induction driving function, can significantly reduce traffic accidents, to
achieve safety guidance.
Product   Parameter
12'' Digitals Height
600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs 2
13.4'' Digitals Height
600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs 3
Speed Feedback Device Components
600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs 4
1.Speed limited sign (indicating the speed limit of the road section)
2.Such as "Please note your speed" and a dynamic LED (Conductor light-emitting diode) display, the above data shows the vehicle's
speed
3.Microwave radar test the speed
4.Solar power with solar power supply system
Speed feedback device install instructions
600x1000 Solar Radar Speed Limit Sign With Holder Outdoor LED Radar Traffic Signs 5

1.Fix the solar panel on the frame, and then fixed on the speed feedback instrument with screws and nuts. The white wires are used to connect the solar panels and the batteries in the speed feedback box, and the positive and negative electrodes are connected one by one.
2.The speed feedback device fixed on the road left or right, or just above the road ,so that the direction of the radar port to the car, the tilt angle of not more than 15 degrees, if it is fixed above the road, the radar fixed position should be radar Cavity oblique angle alignment to the car location. At the same time, the higher the distance between the radar and the ground, the farther away the radar work. Generally, The distance from the ground to radar in 2-7 m is better.
3.Open the speed feedback device's back cover, connected The radar data cable, control board connector one by one. And then adjust of the radar position, so that it position the car.
4.When the speed feedback device over the top,fixed the speed feedback with a screw to the column.
