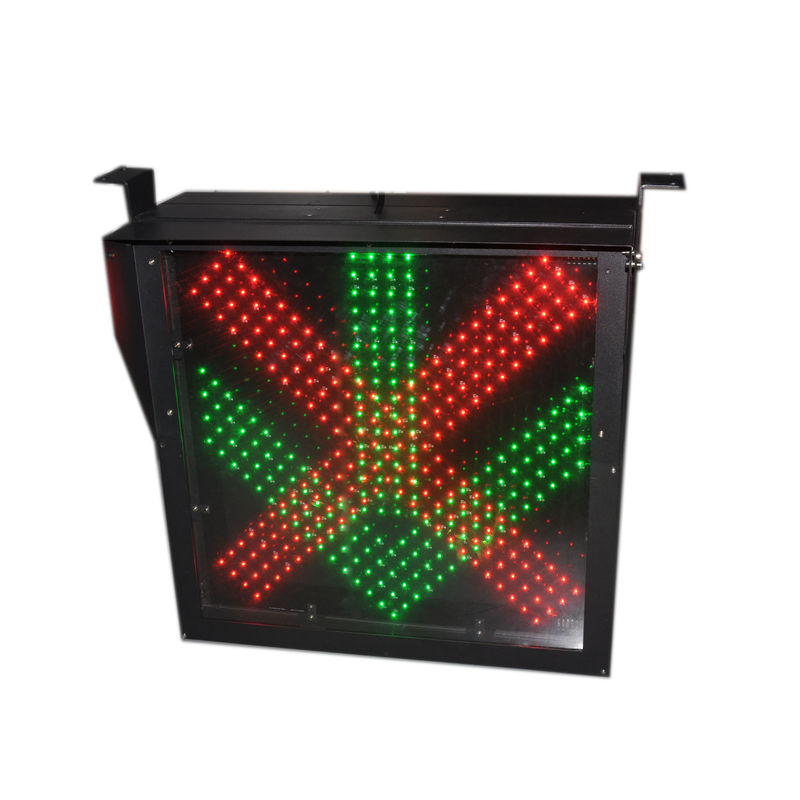

Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop

Product Details

Place of Origin: Guangdong, China

Brand Name: Glare-LED

Model Number: GLG-LCS-600/400A

Payment & Shipping Terms

Price: Negotiable

Get Best Price
Product Details
Highlight:

Lane Control Led Arrow Light Signal

,

Traffic Signs Led Arrow Light

Application:
LED Lane Control/Message
Type:
LED
Color:
R: 620 To 630nm G : 500 To 530nm Y : 585 To 595nm, R: 620 To 630nm G : 500 To 530nm Y : 585 To 595nm
Panel Size:
40*400/600*600, 40*400/600*600
Supplier Type:
Original Manufacturer
Media Available:
Datasheet, Photo
Use:
LED Lane Control/Message
Pixel Pitch:
Other, Other
Specification:
400*400, 600*600
HS Code:
8531200000
Resolution:
400*400/600*600
Usage:
Outdoor
Electrical Safty:
HD 60364-4-443 And HD 638 S1
Product Size:
400*400/600*600
Consumption:
30W
Load:
En 12899-1 : 2007
Flexure:
En 12899-1 : 2007
Visible Flashing Rate:
>90Hz
IP Rate:
IP65
Visual Angle:
30°
Application:
LED Lane Control/Message
Type:
LED
Color:
R: 620 To 630nm G : 500 To 530nm Y : 585 To 595nm, R: 620 To 630nm G : 500 To 530nm Y : 585 To 595nm
Panel Size:
40*400/600*600, 40*400/600*600
Supplier Type:
Original Manufacturer
Media Available:
Datasheet, Photo
Use:
LED Lane Control/Message
Pixel Pitch:
Other, Other
Specification:
400*400, 600*600
HS Code:
8531200000
Resolution:
400*400/600*600
Usage:
Outdoor
Electrical Safty:
HD 60364-4-443 And HD 638 S1
Product Size:
400*400/600*600
Consumption:
30W
Load:
En 12899-1 : 2007
Flexure:
En 12899-1 : 2007
Visible Flashing Rate:
>90Hz
IP Rate:
IP65
Visual Angle:
30°
Product Description
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 0
Products Overview
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 1
Toll station lane control signs are usually installed at the entrance of each lane of expressway toll station to indicate the
current status of the lane, which is an important guarantee for the safe passage of expressway. Glare LED toll station lane control signs have high brightness and strong penetration ability, and the prompt content can still be clearly visible in distant
or foggy weather, playing a good warning role; Good reliability, high protection grade, bad weather can still work normally.
Product Features
1, series and parallel process, series and parallel mode, one lamp damage, does not affect the other lamp;
2, the whole plate process, 400*400/600*600 whole plate production process, no joint, good consistency;
3, traffic standards, using traffic green, meet the requirements of traffic display;
4, thin and portable, PCB board, thin and light products;
5, easy to install, cabinets installation methods are optional.
Product   Parameter
product size
400*400 / 600*600
cabinet material
Aluminum or iron
load
EN 12899-1 : 2007
flexure
EN 12899-1 : 2007
impact force
passed
vibratory force
passed
passive safety
EN12767
brightness
R ≥3100 cd/m² G ≥3700 cd/m² Y ≥7400 cd/m²
brightness ratio
R ≥4.2 G ≥5 Y ≥10
color
R : 620 to 630nm G : 500 to 530nm Y : 585 to 595nm
visual angle
30°
homogeneity
Uniformity
Visible flashing rate
≥90Hz
input voltage
230Vac±15%, 50Hz
electrical safty
HD 60364-4-443 and HD 638 S1
consumption
30W
operating temperature
-25ºC to +60ºC
operating humidity
Up to 95%
IP rate
IP65
anti-corrosion
D3, D4
conduction
EN50293
radiation
EN50293
interface
RS232, RS485, Ethernet, GPRS, 3G
brightness control
256 level automatic adjustment
LED Single point detection
Open circuit and short circuit
sensor
Temperature sensor, humidity sensor
Quality Control Process
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 2
Mass production
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 3
Company Profile
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 4
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 5
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 6
Project Case
Used mainly in highway expressway toll stations.
Original Traffic Signs Led Arrow Light Signal for Lane Control Left Right Arrow Stop 7
FAQ
Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets. no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 1oyear experience, and almost 3oR&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
