With a reliable performance and powerful operating system, the cost effective Gas Station Ceiling LED Display can meet different
multi-tasking needs. Glare-LED Gas Station LED Display can support text, graphics, animation, time, temperature and humidity
directly displayed in full color. We will provide the front maintenance type LED display. And the front maintenance type screens
are usually designed as the front open-lid kind LED display cabinets.It is only different in the LED cabinet structure part.There
would be several gas springs inside the LED cabinet. The LED display cabinet will open automatically when you open the locks.
SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD sales@glareled.com 86-755-29168291-881
Products
Home
>
Products
>
Gas Station LED Signs
>
Digital Led Gas Price Changer Outdoor LED Video Wall Panel For Gas Station RGB Pixel Pitch

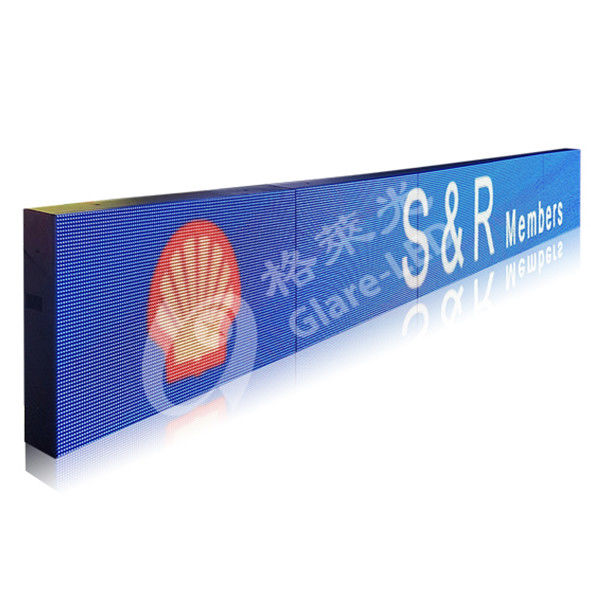

Digital Led Gas Price Changer Outdoor LED Video Wall Panel For Gas Station RGB Pixel Pitch
Product Details
Place of Origin: Guangdong, China
Brand Name: Glare-LED
Model Number: GLG-GS-060F
Payment & Shipping Terms
Price: Negotiable
Get Best Price
Product Details
Highlight:
led gas price changer
,Outdoor LED Video Wall Panel
,Digital Gas Price Changer
Application: |
Outdoor, Gas Station, Petrol Station |
Type: |
LED |
Color: |
Full Color, Single Color, Tri-Color, Or RGB |
Panel Size: |
8-36inch, 8-36inch |
Supplier Type: |
Original Manufacturer |
Media Available: |
Datasheet, Photo |
Use: |
Gas Station, Petrol Station |
Pixel Pitch: |
Other, Other |
Specification: |
32*16 |
HS Code: |
8531200000 |
Resolution: |
150w |
Color Base Color Type: |
Full Color |
Waterproof Level: |
IP65 |
Frequency: |
25Hz |
DIP Pixel Pitch: |
10mm, 12mm, 14mm, 16mm, 20mm, 25mm |
SMD Pixel Pitch: |
6mm, 7.62mm, 8mm, 10mm, 12mm |
Max. Resolution: |
76, 800 Pixels, 240(H) X320(W) |
Control Software: |
LED Editor Software |
Brightness: |
4, 000CD/M2 At Least |
Refresh Rate: |
>480Hz; >2,000Hz(PWM) |
Application: |
Outdoor, Gas Station, Petrol Station |
Type: |
LED |
Color: |
Full Color, Single Color, Tri-Color, Or RGB |
Panel Size: |
8-36inch, 8-36inch |
Supplier Type: |
Original Manufacturer |
Media Available: |
Datasheet, Photo |
Use: |
Gas Station, Petrol Station |
Pixel Pitch: |
Other, Other |
Specification: |
32*16 |
HS Code: |
8531200000 |
Resolution: |
150w |
Color Base Color Type: |
Full Color |
Waterproof Level: |
IP65 |
Frequency: |
25Hz |
DIP Pixel Pitch: |
10mm, 12mm, 14mm, 16mm, 20mm, 25mm |
SMD Pixel Pitch: |
6mm, 7.62mm, 8mm, 10mm, 12mm |
Max. Resolution: |
76, 800 Pixels, 240(H) X320(W) |
Control Software: |
LED Editor Software |
Brightness: |
4, 000CD/M2 At Least |
Refresh Rate: |
>480Hz; >2,000Hz(PWM) |
Product Description
Customizable Outdoor LED Video Wall Panel for Gas Station RGB Other Pixel Pitch
Products Overview
Advantages
Product Parameter
|
DIP Pixel Pitch
|
10mm, 12mm, 14mm,16mm, 20mm, 25mm
|
|
SMD Pixel Pitch
|
6mm, 7.62mm, 8mm, 10mm, 12mm
|
|
Color
|
Single color, tri-color, or RGB
|
|
Max. Resolution
|
76,800 pixels, 240(H) ×320(W)
|
|
Control Software
|
LED Editor software
|
|
Brightness
|
4,000cd/m2 at least
|
|
Viewing Angle
|
DIP:110°/55° (H/V) SMD:100°/100° (H/V)
|
|
Connection Methods
|
TCP/IP (default), RS232, RS485, USB, Wireless RF, 3G, WiFi, etc.
|
|
Storage Capacity
|
256MB or 512MB
|
|
Color Category
|
Each color type has up to 256 grayscales
|
|
Color Display
|
Max.4.4 trillions
|
|
Color Depth
|
12bit/ color
|
|
Refresh Rate
|
>480Hz; >2,000Hz(PWM)
|
|
Frequency
|
25Hz
|
|
Brightness Control
|
32 levels-auto, 32-software
|
|
Cabinet Material
|
Steel, aluminum or customized
|
|
Working Temp.
|
-20ºC to +65ºC default
|
|
Working Humidity
|
15%-95% RH
|
|
Input Power
|
AC 110 or 220 V ±10%, 50-60 Hz
|
|
Lifespan
|
100,000 hours
|
Product Features
√ Front of the module using high-quality imported glue Glue carried back waterproof apron, improve water resistance of the display.
√ Having a high performance level above IP65 waterproof and dust
√ All day long display, adapt to harsh outdoor environments.
√ Factory strict quality control, subject to aging, vibration and a series of rigorous tests to ensure that the factory zero
failure rate.
√ Having a high performance level above IP65 waterproof and dust
√ All day long display, adapt to harsh outdoor environments.
√ Factory strict quality control, subject to aging, vibration and a series of rigorous tests to ensure that the factory zero
failure rate.
√ High-quality constant current drive LED display special chip design, with a small package, high brightness, wide viewing angle, anti-static characteristics
√ The new mask design, so that the light emitted from the LED to achieve almost zero reflection, ensure the display screen body.
√ Box design module unit using high temperature coating technology has greatly enhanced rust-proof function.
√ Module mounting surface flatness control of plus or minus 0.2mm, good flatness of the entire screen
√ Intelligent exposure control system according to changes in outdoor light automatically adjust the display brightness, energy
saving, lower costs.
√ PCB using wave soldering process, with green oil and oxygen barrier, preventing the line of wet oxidation and improve the life
√ The new mask design, so that the light emitted from the LED to achieve almost zero reflection, ensure the display screen body.
√ Box design module unit using high temperature coating technology has greatly enhanced rust-proof function.
√ Module mounting surface flatness control of plus or minus 0.2mm, good flatness of the entire screen
√ Intelligent exposure control system according to changes in outdoor light automatically adjust the display brightness, energy
saving, lower costs.
√ PCB using wave soldering process, with green oil and oxygen barrier, preventing the line of wet oxidation and improve the life
√ Advanced manufacturing processes and packaging technology to ensure the quality and longevity of the display.
√ Raw materials include LED chips, mask, glue and iron box has the ability to high temperature, high humidity, and UV resistant, waterproof, anti-corrosion and rust.
√ Raw materials include LED chips, mask, glue and iron box has the ability to high temperature, high humidity, and UV resistant, waterproof, anti-corrosion and rust.
Waterproof
Use cabinet design
Cabinet has a variety of colors
Quality Control Process
Package Method
Company Profile
Project Case
FAQ
Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets. no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience, and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
