Product Details
Place of Origin: China
Payment & Shipping Terms
Price: Negotiable
Digit Height: |
12 Inch Or 13.4 Inch |
Digit Color: |
Red & Green Or Yellow |
Cabinet Material: |
Cold Rolled Steel Cabinet |
Waterproof: |
IP65 Protected For Outdoor Use |
Communication: |
RF Remote |
Pixel Pitch: |
P10 |
Lamp Package: |
DIP |
Digit Height: |
12 Inch Or 13.4 Inch |
Digit Color: |
Red & Green Or Yellow |
Cabinet Material: |
Cold Rolled Steel Cabinet |
Waterproof: |
IP65 Protected For Outdoor Use |
Communication: |
RF Remote |
Pixel Pitch: |
P10 |
Lamp Package: |
DIP |

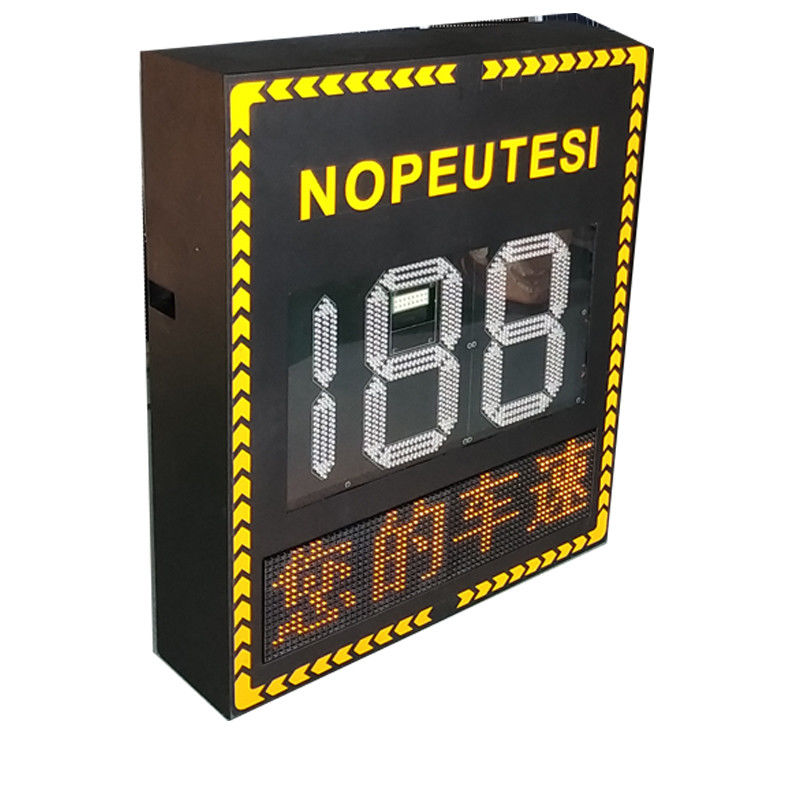

12 inch or 13.4 inch Digit Height Led VMS Radar Speed Limit Signs with P10 Pixel Pitch
|
Model C
|
Size 1
|
Size 2
|
||
|
Cabinet Size:
|
W:750mm * H:890mm * D:200mm
|
W:802mm * H:960mm * D:200mm
|
||
|
the Specifications of the "188" (see as below):
|
|
|
||
|
Height of the digit "188"
|
12"
|
13.4"
|
||
|
Formats of the display digits
|
"188" (3 digits)
|
|
||
|
Displaying Speed Range
|
1 km/h - 199 km/h
|
|
||
|
Color of the digits "188"
|
yellow (standard) or Red/Green (custom)
|
|
||
|
"188" Power Consumption:
|
Max 15W ( Average <10W)
|
|
||
|
Brightness:
|
about 5000 cd/m²
|
|
||
|
Working Voltage:
|
DC 12V
|
|
||
|
Visual Distance:
|
150 meters
|
|
||
|
Communication:
|
RF remote
|
|
||
|
the Specificaitons of the matrix (see as below:) (Variable message sign, it is editable)
|
|
|
||
|
Led Lamp:
|
DIP P10, yellow, with viewing angle 70°
|
|
||
|
Brightness:
|
about 2000 cd/m²
|
|
||
|
input Voltage
|
5V
|
|
||
|
Communication:
|
TCP/IP or Serial port(RS232,RS254 etc.)
|
|
||
|
the specifications of the Cabinet (see as below:)
|
|
|
||
|
Cabinet Material:
|
Cold Rolled Steel Cabinet
|
|
||
|
Waterproof Level:
|
IP65 protected for outdoor use
|
|
||
|
Operating Temperature
|
minus 40℃ - 70℃
|
|
||
|
Maintenance
|
Back access Cabinet (standard) or Front Access (custom)
|
|
||
|
Lift time:
|
over 10 years
|
|
||
|
Model A
|
Size 1
|
Size 2
|
|
|
Height of the digit "188"
|
12"
|
13.4"
|
|
|
Cabinet Size:
|
W:690mm *H:1284mm*D:200mm
|
W:810mm*H:1404mm*D:200mm
|
|
|
Formats of the display digits
|
"188" (3 digits)
|
|
|
|
Displaying Speed Range
|
1 km/h - 199 km/h
|
|
|
|
Color of the digits "188"
|
Red & Green ( display red if over speed)
|
|
|
|
Brightness:
|
about 5000 cd/m²
|
|
|
|
Working Voltage:
|
DC 12V (solar power) or AC 220V
|
|
|
|
Power Consumption:
|
Max 15W (Average <10W)
|
|
|
|
Visual Distance:
|
150 meters
|
|
|
|
Led Lamp:
|
DIP ∅5
|
|
|
|
Viewing Angle:
|
30 degree
|
|
|
|
Communication:
|
RF remote
|
|
|
|
Cabinet Material:
|
Cold Rolled Steel Cabinet
|
|
|
|
Waterproof Level:
|
IP65 protected for outdoor use
|
|
|
|
Operating Temperature
|
minus 40℃ - 70℃
|
|
|
|
Maintenance
|
back access
|
|
|
|
Lift time:
|
over 10 years
|
|
|
|
Model B
|
Size 1
|
Size 2
|
|
|
Height of the digit "188"
|
12"
|
13.4"
|
|
|
Cabinet Size:
|
W:701mm*H:492mm*D:200mm
|
W:830mm*H:530mm*D:200mm
|
|
|
Formats of the display digits
|
"188" (3 digits)
|
|
|
|
Displaying Speed Range
|
1 km/h - 199 km/h
|
|
|
|
Color of the digits "188"
|
Red & Green ( display red if over speed)
|
|
|
|
Brightness:
|
about 5000 cd/m²
|
|
|
|
Working Voltage:
|
DC 12V (solar power) or AC 220V
|
|
|
|
Power Consumption:
|
Max 15W (Average <10W)
|
|
|
|
Visual Distance:
|
150 meters
|
|
|
|
Led Lamp:
|
DIP ∅5
|
|
|
|
Viewing Angle:
|
30 degree
|
|
|
|
Communication:
|
RF remote
|
|
|
|
Cabinet Material:
|
Cold Rolled Steel Cabinet
|
|
|
|
Waterproof Level:
|
IP65 protected for outdoor use
|
|
|
|
Operating Temperature
|
minus 40℃ - 70℃
|
|
|
|
Maintenance
|
back access
|
|
|
|
Lift time:
|
over 10 years
|
|
|
