Dual Color LED Screen Display For Parking Space Underground Parking System

Name: Dual Color LED Screen Display For Parking Space Underground Parking System
Brand: SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD
SKU: GLG-PLD-100D
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Glare-LED

Model Number: GLG-PLD-100D

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Dual Color LED Screen Display, LED Screen Display For Parking Space, Underground LED Screen


Application:	Praking	Type:	LED
Color:	Dual-color	Panel Size:	32016026(mm), 32016026(mm)
Supplier Type:	Original Manufacturer	Media Available:	Datasheet, Photo
Use:	Praking	Pixel Pitch:	10mm, 10mm
Specification:	32*16	Brightness:	≥7000 CD/M2, ≥7000 CD/M2, 10000CD/M2
Pixel Density:	10000 Dots/M2, 10000 Dots/M2	HS Code:	8531200000
Resolution:	32*16	View Angle（H/V）:	90°, 90°
Color Base Color Type:	Dual-color	Waterproof Level:	IP65
Pixel Pitch:	10mm	Pixel Composition:	2R1G
Average Power Consumption:	350	Size Of PCB Board:	32016026(mm)
Input Voltage:	5V	Maximum Current:	1.8W
Title:	Outdoor P10 Parking Lots LED Display

Application:	Praking
Type:	LED
Color:	Dual-color
Panel Size:	32016026(mm), 32016026(mm)
Supplier Type:	Original Manufacturer
Media Available:	Datasheet, Photo
Use:	Praking
Pixel Pitch:	10mm, 10mm
Specification:	32*16
Brightness:	≥7000 CD/M2, ≥7000 CD/M2, 10000CD/M2
Pixel Density:	10000 Dots/M2, 10000 Dots/M2
HS Code:	8531200000
Resolution:	32*16
View Angle（H/V）:	90°, 90°
Color Base Color Type:	Dual-color
Waterproof Level:	IP65
Pixel Pitch:	10mm
Pixel Composition:	2R1G
Average Power Consumption:	350
Size Of PCB Board:	32016026(mm)
Input Voltage:	5V
Maximum Current:	1.8W
Title:	Outdoor P10 Parking Lots LED Display

Product Description

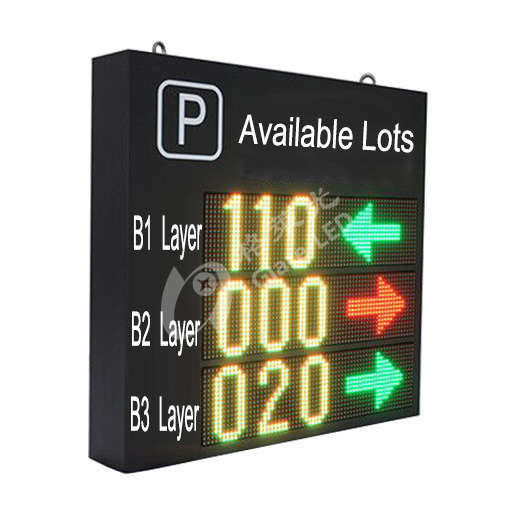

Custom Dual-color LED Screen Display for Parking Space in Underground Parking System

Products Overview

Parking lots led display is mainly used for parking floor, the area is large, more parking space in more places, installed in the entrance of the yard and floor open intersection,according to the division of parking places in the area/floor to set the number of correlation on the corresponding display screen LED small, available form of Numbers and words for a real-time display the
current regional/free parking floor parking lot number, To provide a visual direction for the car owners preparing for the
entrance, improve the efficiency of entering and finding a seat.

Product Features

1. Dual-color display of free parking space, clear and clear;
2. High brightness, wide vision, modular structure, high reliability;
3. Direction arrow "→", "↑", "←" and numbers, the green number represents the number of free parking Spaces, and the red font represents the number of full parking Spaces or warning parking Spaces;
4. The type of display screen can be conveniently set as one-way, two-way and three-way parking guide display screen by software;
5. Real-time release of intelligent active guidance;
6. Display content, color and arrow direction can be set and modified according to the system software;
7.TCP/IP network communication, real-time display of the number of parking lots change.

Product Parameter

	P10	P12	P16
LED Package	DIP 347
Horizontal viewing Angle	≥90°(+5/-5)
Vertical viewing Angle	≥40°(+5/-5)
brightness	≥7000 CD/M2
Pixel pitch	10 mm	12 mm	16 mm
Pixel density	10000 Dots/M2	6944 Dots/M2	3906 Dots/M2
Pixel composition	2R1G
Resolutions	32*16 Dots	16*16 Dots	16*8 Dots
Drive mode	1/4 Scan	1/4 Scan	Static constant current
Minimum viewing distance	10m	12m	16m
Size of pcb board	32016026(mm)	19219226(mm)	25612830(mm)
weigth of pcb board	500±10g	500±10g	520g
Pcb board flatness	≤0.2 mm
Packing size	520365390(mm)	--	--
thickness (mm)	--
input voltage (AC)	5V
Maximum current	1.8 А	1.6А	1.2A
Maximum module power	9W	8W	6W
MTTF	≥10000hours
working life	≥50000 hours
out of control rate	<1/10000
Maximum contrast	1000:1
Peak power consumption(W/m)	--
Average power consumption (W/mM2)	--
Refresh rate	>960(Hz)
Using the environment	Outdoor
Operating temperature range	-20~60ºC
Operating humidity range	10%-90%RH

Company Profile

Project Case

FAQ

Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets. no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience, and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.
