Highway Toll Collection System LED Sign with Dual-color 2R1G Pixel Configuration

Name: Highway Toll Collection System LED Sign with Dual-color 2R1G Pixel Configuration
Brand: SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD
SKU: GLG-FX-047D
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Glare-LED

Model Number: GLG-FX-047D

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Highway Toll Collection System LED Sign, Dual-color Highway LED Sign


Application:	Eunnel, Urban Roadxpressway	Type:	LED
Color:	Dual-color	Panel Size:	700650, 700650
Supplier Type:	Original Manufacturer	Media Available:	Datasheet, Photo
Use:	Eunnel, Urban Roadxpressway	Pixel Pitch:	Other, Other
Specification:	16*8	HS Code:	8531200000
Resolution:	64*32	Usage:	Outdoor
Color Base Color Type:	Dual-color	Waterproof Level:	IP65
Pixel Pitch:	4.75mm	Pixel Composition:	2R1G
Average Power Consumption:	180	Maximum Power:	180W
Brightness:	4000CD/M2	Average Power:	55W
External Dimension:	700mmx650mmx150mm

Application:	Eunnel, Urban Roadxpressway
Type:	LED
Color:	Dual-color
Panel Size:	700650, 700650
Supplier Type:	Original Manufacturer
Media Available:	Datasheet, Photo
Use:	Eunnel, Urban Roadxpressway
Pixel Pitch:	Other, Other
Specification:	16*8
HS Code:	8531200000
Resolution:	64*32
Usage:	Outdoor
Color Base Color Type:	Dual-color
Waterproof Level:	IP65
Pixel Pitch:	4.75mm
Pixel Composition:	2R1G
Average Power Consumption:	180
Maximum Power:	180W
Brightness:	4000CD/M2
Average Power:	55W
External Dimension:	700mmx650mmx150mm

Product Description

Products Overview

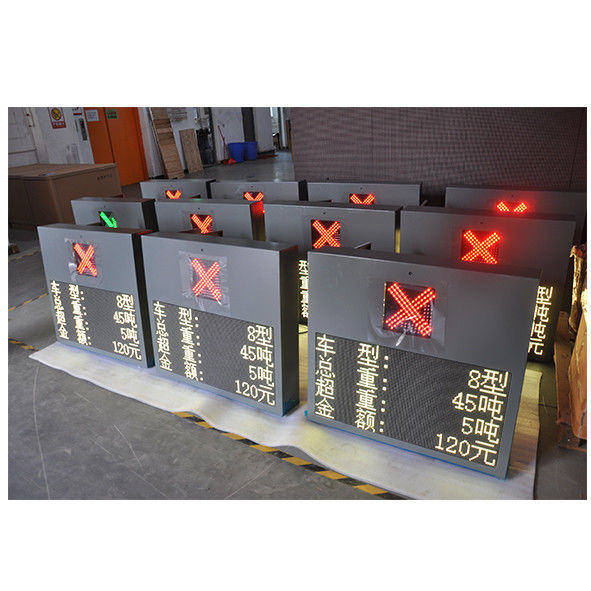

Patron external display is a product developed by Glare LED for highway toll station application, which combines information
display, fee indication, voice broadcast, traffic tips and other comprehensive functions. It also has the characteristics of
energy conservation and environmental protection, high brightness, strong penetration ability, high protection level, and is a
recommended product in line with sustainable development.

Product Features

1,Using SMD process, long life, low light decay, low power consumption, good energy saving effects;
2, black mask design on the surface, higher contrast;
3, brightness>3500nits, strong penetration ability, display is clearly visible in foggy days and long distance;
4, IP65 protection grade, strong environmental resistance, can resist all kinds of harsh environments;
5, with voice broadcast, sound and light alarm functions;
6, column installation, backside maintenance;
7, support customized control protocol.

Product Parameter

Led Display parameters
led package	SMD1921,1R1G(Highlight led chip)
pixel pitch	4.75mm
external dimension	700mm×650mm×150mm
display size	608mm×304mm
structural material	cabinet and column are made of stainless steel or cold-rolled steel with plastic-sprayed surface
display mode	up and down, left and right scroll display, scroll speed adjustable, display immediately
Interface means	standard RS232 Or (RS485, TCP/IP) is optional
standard RS232 Or (RS485, TCP/IP) is optional
operating voltage	AC220V±18% 50Hz±10%
light intensity	≥4000cd/M2
Viewing Distance	≥4.75m
operating temperature	-20ºC~+50ºC
operating humidity	5%~95%
IP Grade	IP65
maximum power	180W
average power	55W
weight	≈30KG
Lane led lamp parameters
composition	high brightness red LED and high brightness green LED
lamp specification	φ5
rated voltage	DC12V
view angle	horizontal≥30°,vertical≥30
view distance	≥30m
Yellow flashing alarm parameters
alarm audio	2KHz--6KHz
alarm sound intensity	100-120dB(1 meter)

Project Case

Used mainly in highway expressway toll stations.
