products

Home > products > Pixel Cluster LED Gas Price Sign > 5000/M2 8000cd/M2 Digit Height 24" 32" 48" LED Gas Sign For Gas Station Led Display Board

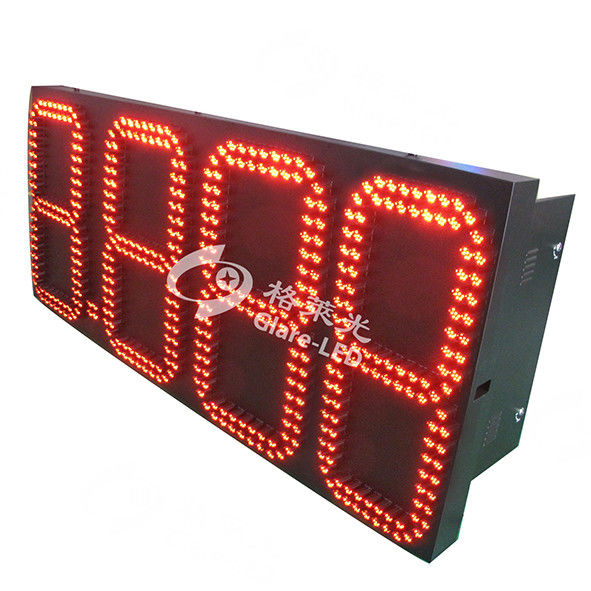

5000/M2 8000cd/M2 Digit Height 24" 32" 48" LED Gas Sign For Gas Station Led Display Board

Name: 5000/M2 8000cd/M2 Digit Height 24" 32" 48" LED Gas Sign For Gas Station Led Display Board
Brand: SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                led display board, 8000cd/m2 LED Gas Sign, 48" LED Gas Sign


Product Name:	LED Gas Price Sign	Nember Format:	8.88/88.88/8.888/8.889/(8.889/10)
Digit Height:	8" -32"	Brightness:	5000 /m2 - 8000cd/m2
Brightness Control:	Auto-dimming By Sensor	Maintenance:	Front Or Rear Access
Casing Material:	Iron, Steel,aluminum Available	Waterproof Level:	IP65 For Outdoor Use
Power Input:	110/220VAC,60HZ/50HZ	Communication:	RF Remote, Rs232 , Rs422 ; TCP/IP,GSM,

Product Name:	LED Gas Price Sign
Nember Format:	8.88/88.88/8.888/8.889/(8.889/10)
Digit Height:	8" -32"
Brightness:	5000 /m2 - 8000cd/m2
Brightness Control:	Auto-dimming By Sensor
Maintenance:	Front Or Rear Access
Casing Material:	Iron, Steel,aluminum Available
Waterproof Level:	IP65 For Outdoor Use
Power Input:	110/220VAC,60HZ/50HZ
Communication:	RF Remote, Rs232 , Rs422 ; TCP/IP,GSM,

Product Description

5000 /m2 8000cd/m2 Brightness Digit Height 24" 32" 48" LED Gas Sign for Gas Station

Product Overview

In today's ever shifting economy where gasoline prices seem to fluctuate more often than the temperature outside, having a dependable, easy-to-change LED price display has become the ideal advertising solution for many areas of business. Glare-LED offer you a reasonable LED affordable digit solution at the right time. Extremely visible from far distances, Glare-LED gas price sign also features an improved controller design, making it easier for employees in convenience store to change the sign's price.

Product Paramenters

Height

Model Number

Number

format

Max Size

Character

Housing Dimension

(H×W×D)

Voltage

Net

weight

Color

lines for

Leds

12''

GLG-12inch8.888-Red/Amber

/Green

8.888

304.8mm

H400mm W944mm

D60mm

R/Y:42W B/G/W:44W

12kg

Red

3 lines

Yellow

green

blue

white

GLG-12inch8.889-Red/Amber

/Green

8.889

304.8mm

H400mm W836mm

D60mm

R/Y:35.5W B/G/W:37.5W

9kg

Red

3lines

Yellow

green

blue

white

GLG-12inch8.88 9/10-Red
/Amber/Green

8.88 9/10

304.8mm

H400mm W836mm

D60mm

R/Y:35W B/G/W:37W

9.5kg

Red

3 lines

Yellow

green

blue

white

16''

GLG-16inch8.888-Red
/Amber/Green

8.888

406.4mm

H507mm W1224mm
D60mm

R/Y:64W B/G/W:52W

18kg

Red

4lines

Yellow

green

3 lines

blue

white

GLG-16inch8.889-Red
/Amber/Green

8.889

406.4mm

H507mm W1077mm

D60mm

R/Y:53W B/G/W:44.5W

16kg

Red

4 lines

Yellow

green

3 lines

blue

white

GLG-16inch8.88 9/10-Red
/Amber/Green

8.88 9/10

406.4mm

W1077mm

H507mm D60mm

R/Y:57W B/G/W:49.5W

16.5kg

Red

4 lines

Yellow

green

3 lines

blue

white

24''

GLG-24inch8.888-Red
/Amber/Green

8.888

609.6mm

H710mm W1771mm

D60mm

R/Y:112W B/G/W:80W

26kg

Red

5 lines

Yellow

green

4lines

blue

white

GLG-24inch8.889-Red
/Amber/Green

8.889

609.6mm

H710mm W1564mm
D60mm

R/Y:94.5W B/G/W:71W

24.6kg

Red

5 lines

Yellow

green

4lines

blue

white

GLG-24inch8.88 9/10-Red
/Amber/Green

8.88 9/10

609.6mm

H710mm W1564mm

D60mm

R/Y:102W B/G/W:76W

25kg

Red

5 lines

Yellow

green

4lines

blue

white

Series Parameters

Color: Red, amber, green, blue or white
Digit Height: 4", 6", 8", 10", 12", 16",18",20", 24", 32", 36", 48", 60" etc.
Digit Design: 4"~24" : standard digit; 32" and above are multi-stroke seven segment digits.
Brightness Control: Auto-dimming by sensor.
Features: High brightness, high strength, high sunscreen
Display Dimming: Over 8 levels of automatic intensity adjustment.

Product Feature

1,LED Wavelength Advantages: As drivers often meet with traffic light, they are senstive to the objects in the same
wavelength/color.Using such principle, Glare led gas sign can draw the driver's attention in the distance. While due to color
difference with traffic light, the commom leds can not attract attention largely
2,Glare traffic leds with 100 ° wide Viewing Angle and long Viewing Distance
From this picture you can see: wider-angle lamp , more car can see the LED gas price sign, better advertising effect will get.
3.Chip difference:Glare traffic leds with higher brightness and Light failure is small.
Glare's LEDs With lower brightness decay, Not big difference between normally on and not normally on led after 1 year.
Other supplier with higher LED brightness decay, big difference between normally on and not normally on led after 1 year.
4,Brightness Adjustment:
The LED signs can have their brightness adjusted, which allows them to be adapted to the surrounding environment and meet energy
conservation and environmental protection needs.
①. With a light sensitive probe ②. The Brightness is adjusted via a wireless remote control. ③. The Brightness is also adjusted
using computer software. Intelligent temperature control, temperature below 40 ℃, the fan does not turn, higher than 40 ℃, the fan
open, prolong the service life of fan and sign brand.
① Automatic brightness control.②With a light sensitive probe.

Product Size

Accessories

Product Details:
Brand Name: Glare-led
Model Number: GLG-"X" inch 888.8,8.888,8.88-9,8.889/10 etc
Usage: Gas Station
Tube Chip Color: Red/Amber/Bule/Green/White
Display Function: Graphics
Screen Dimension: 8",10",12",16",24",32",36'',42" ,48'',60'',72''
Viewing Angle:: Horizontal:110° Vertical:40°
Working Temperature: -20~60°C
Housing Material:: Cold rolled steel cabinet
Communication:: Available in RF/LCD/RS232/TCP/IP
Brightness:: 5000cd/m2
Waterproof/Weatherproof Rate:: IP 65
LEDs Life Expectancy:: 100,000 hours(11+years)
Visibility:: 50m~430m(Depends on the size)
Adjustable high brightness large-sized pixels cluster led gas price sign:
1.Sinal cable -Glare led gas price display using color flat cables with thick copper wires inside and great anti-interference
performance.
2. pin sigal cable for male & female head
3.pin power cable for male & female head
4.Waterproof connector
Adjustable high brightness large-sized pixels cluster led gas price sign with 6patents :
1. Patent1:A kind of LED "8" digital board for displaying numbers
(many copper as heat dispatch media,better cooling fuction)
2.Patent2: Ultra-thin LED Gas Price Boards (Light and thin,depth is 60mm )
3.Patent3: With better dust-proof, waterproof effect.
4.Patent4: Better in heat dissipation
5.Patent5: easy to install (Installation brackets)
6.Patent6: Control box (control box output voltage DC12V for safe maintenance)

Product Description

System Connectivity

Production

Quality Control Process

Package Method

Package Method

FAQ

Q: What do the gas price display come with? A: Pixel tube cluster signs the control card power supply are inside the cabinets . no need control box anymore. Q: What is the warranty policy should the led price billboards arrive damaged? A: We are pleased to offer our convenient warranty policy. Q: How long do gas price signs last? A: Our signs can last an average of 6 years. Q: Can you provide finished product solution for exhibition or bid? A: Yes, we can, we have in this trade with 10year experience , and almost 30R&D Dept. Q: Can you provide the digital board as the size of customing? A: Yes, of course, but our size already so much. If you want custom please contact LED Gas Signs Customers.

Our Service

Your Source for turn-key, reliable, cost effective, trade show display solutions.
The vast variety of different venues that use Glare-LED to advertise and create exposures speaks to the versatility of LED
signage. Perhaps you are a dentist trying to recruit new patients. Maybe you operate a movie theater and are looking for a
new,convenient way to display the weekly movies. You could be a pastor looking to use led signage to extend your ministry.
Whatever your need let us help you find a led sign that will help increase your exposure.
