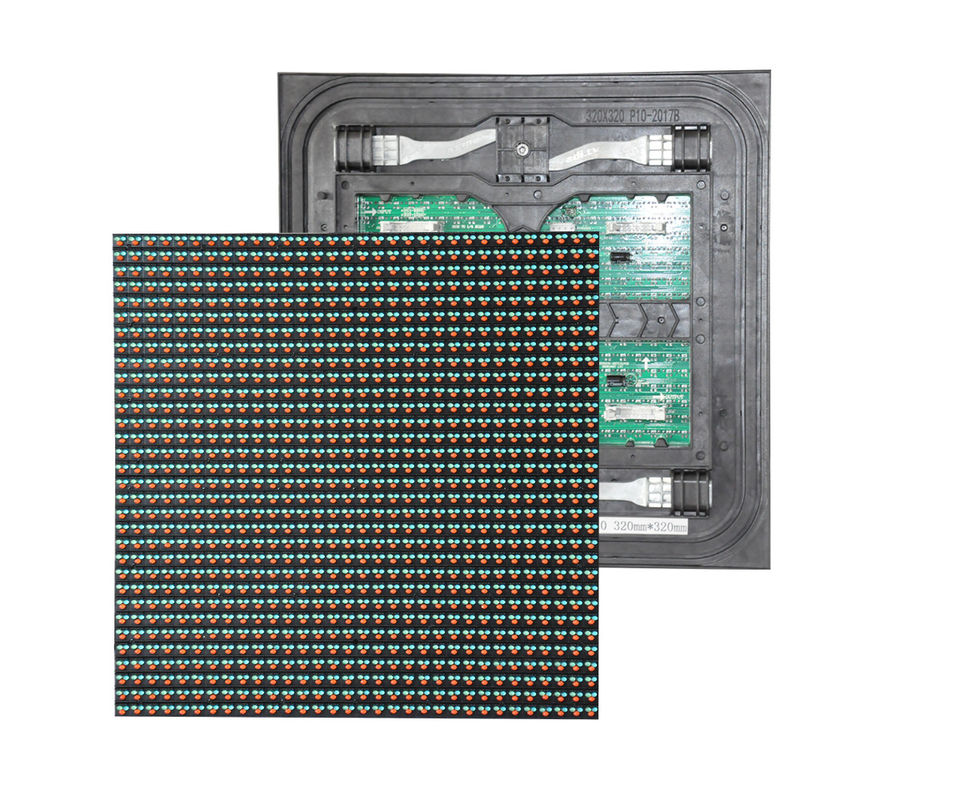

Max. Power W 650 Full Color Led Video Wall DIP P10 P16 P20 Outdoor Advertising Front Service Modules

Name: Max. Power W 650 Full Color Led Video Wall DIP P10 P16 P20 Outdoor Advertising Front Service Modules
Brand: SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD
SKU: GLG-FS10
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Glare-LED

Model Number: GLG-FS10

Payment & Shipping Terms

Price: Negotiable

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Front Service Led Video Wall, Full Color Led Video Wall, Outdoor Advertising Led Video Wall


Application:	Advertising/Message	Type:	LED, FS Series P10
Color:	Full Color	Panel Size:	320320, 320320
Supplier Type:	Original Manufacturer	Media Available:	Datasheet, Photo
Use:	Advertising Publish, Shopping Mall, Welcome Display, Education, Advertising/Message	Pixel Pitch:	Other, Other
Specification:	40*40	HS Code:	8531200000
Resolution:	32*32	LEDs:	DIP346
Density (dot/M2):	10000	Pixels Of Modules:	32*32
Module Size(mm):	320*320	LED Lamp Compositions:	1R1G1B
Driving Mode:	Constant Current	Brightness (cd/M2):	7500-8000
Max. Power(W):	650	Scan Mode:	1/4

Application:	Advertising/Message
Type:	LED, FS Series P10
Color:	Full Color
Panel Size:	320320, 320320
Supplier Type:	Original Manufacturer
Media Available:	Datasheet, Photo
Use:	Advertising Publish, Shopping Mall, Welcome Display, Education, Advertising/Message
Pixel Pitch:	Other, Other
Specification:	40*40
HS Code:	8531200000
Resolution:	32*32
LEDs:	DIP346
Density (dot/M2):	10000
Pixels Of Modules:	32*32
Module Size(mm):	320*320
LED Lamp Compositions:	1R1G1B
Driving Mode:	Constant Current
Brightness (cd/M2):	7500-8000
Max. Power(W):	650
Scan Mode:	1/4

Product Description

Products Overview

The spec for Outdoor Frontside Service LED Modules is saving space , for the installation of the mosaic structure, the space is very precious, so as not to leave too much place for maintenance the channel, so the maintenance can greatly reduce the overall thickness of the LED display screen structure, not only can blend well with the surrounding building environment , meanwhile save space while ensuring effect, between the module and the cabinet is installed without screws, more convenient in assembly, a few seconds can be removed by six angle screwdriver, greatly improve work efficiency . The cabinet light, maximum thickness is 115cm,weight is 26kg, compared with similar products, light a lot.

Maintenance Mode

SMD Module Details

DIP Module Details

Modules Advantages

Product Parameter

Pixel Pitch (mm)	LEDs	Density (dot/M2)	Pixels of modules	Module size(mm)	LED lamp compositions	Driving mode	Brightness (cd/M2)	Max. Power(W)	Scan mode
P5.925	SMD2727	28486	54*54	320*320	1R1G1B	Constant current	6000~6500	1000	1/9
P8	SMD3535	15625	40*40	320*320	1R1G1B	Constant current	6000~6500	800	1/4
P10	SMD3535	10000	32*32	320*320	1R1G1B	Constant current	5000~5800	900	1/2
P10	DIP346	10000	32*32	320*320	1R1G1B	Constant current	7500~8000	650	1/4
P16	DIP346	3906	20*20	320*320	1R1G1B	Constant current	7500~8000	550	static
P20	DIP346	2500	16*16	320*320	1R1G1B	Constant current	7000~7500	480	static
