Product Details
Place of Origin: Guangdong, China
Brand Name: Glare-LED
Model Number: GLG-P16
Payment & Shipping Terms
Minimum Order Quantity: 120 pieces
Price: Negotiable
Application: |
Highway Traffic Message LED Display |
Type: |
LED |
Color: |
2A 2R1G 1R1G1B |
Panel Size: |
256*128mm, 256*128mm |
Use: |
Advertising Publish, Outdoor |
Pixel Pitch: |
Other, Other |
Specification: |
8*16 |
Touch Screen Type: |
None |
Brightness: |
12000cd/㎡, 12000cd/㎡, 12000cd/m2 |
HS Code: |
8531909000 |
Resolution: |
16*8 |
View Angle（H/V）: |
30°, 30° |
Usage: |
Highway Traffic Message LED Display |
Display Function: |
Video, Photo, Text |
Product Name: |
P16 LED Module |
Warranty: |
2 Years |
LED Chip: |
Epistar Chip |
Module Size: |
256*128mm |
Max Power Consumption: |
310 |
Drive Method: |
Static |
Wateproof Level: |
IP65 |
Application: |
Highway Traffic Message LED Display |
Type: |
LED |
Color: |
2A 2R1G 1R1G1B |
Panel Size: |
256*128mm, 256*128mm |
Use: |
Advertising Publish, Outdoor |
Pixel Pitch: |
Other, Other |
Specification: |
8*16 |
Touch Screen Type: |
None |
Brightness: |
12000cd/㎡, 12000cd/㎡, 12000cd/m2 |
HS Code: |
8531909000 |
Resolution: |
16*8 |
View Angle（H/V）: |
30°, 30° |
Usage: |
Highway Traffic Message LED Display |
Display Function: |
Video, Photo, Text |
Product Name: |
P16 LED Module |
Warranty: |
2 Years |
LED Chip: |
Epistar Chip |
Module Size: |
256*128mm |
Max Power Consumption: |
310 |
Drive Method: |
Static |
Wateproof Level: |
IP65 |

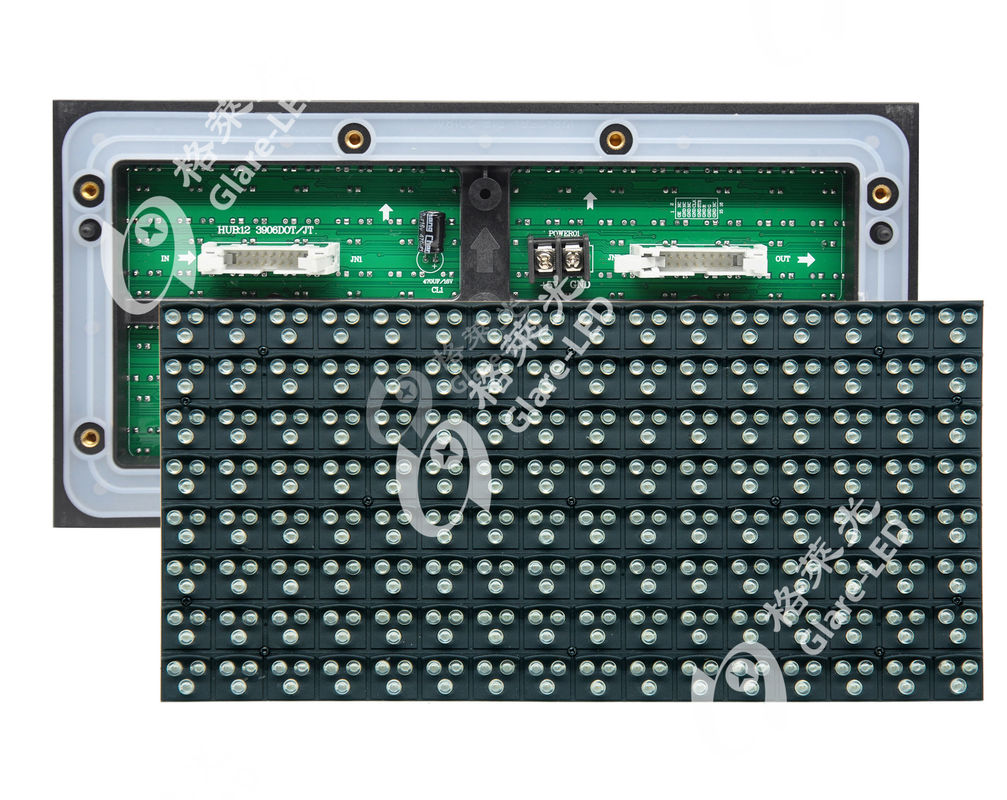

Large Led Billboard Full Color Rgb Dip P16 Led Modules For Outdoor Advertising Display
|
Product name
|
P16
|
screen weight(kg/m²)
|
70
|
|
LED Package
|
Φ5
|
Input voltage (DC)
|
5V
|
|
Horizontal viewing angle
|
≥30°
|
Maximum current
|
1.2/1.5/2A
|
|
Vertical viewing angle
|
≥15°
|
Maximum power (W/m2)
|
6/7.5/10W
|
|
Brightness
|
≥12000 CD/㎡
|
MTBF
|
≥10000 hours
|
|
Pixel pitch
|
16 mm
|
Life time
|
≥50000 hours
|
|
Pixel density
|
900 Dots/㎡
|
Pixel out of control rate
|
﹤1/10000
|
|
Pixel composition
|
4R/4R2G/4R2G1B/custom
|
max contrast
|
1000:1
|
|
Led Module resolution
|
8*4 Dots
|
refresh rate (Hz)
|
>960
|
|
Driving mode
|
static ；constant current
|
Working environment
|
Outdoor
|
|
Minimum viewing distance
|
34m
|
Working temperature
|
-20 to 60℃
|
|
Led Module size (W*H)
|
256*128*33(mm)
|
Working humidity
|
10% to 90% RH
|
|
Led Module weight
|
550±10g
|
Interface definition(HUB12)
|
2 A B C S L R G D 16
1 O N N N N N N N 15 |
|
Flatness
|
≤0.2 mm
|
|
|
