SHENZHEN GLARE-LED OPTOELECTRONIC CO., LTD sales@glareled.com 86-755-29168291-881
Product Details
Place of Origin: Guangdong, China
Brand Name: Glare-LED
Certification: CE/FCC/ROHS for VMS
Model Number: P16
Payment & Shipping Terms
Price: Negotiable
Application: |
Outdoor |
Type: |
LED |
Color: |
FULL COLOR, Single Color,Tri-color,Full Color (VMS) |
Panel Size: |
320*320, 320*320 |
Supplier Type: |
Original Manufacturer |
Media Available: |
Datasheet, Photo |
Use: |
Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Airport, Subway, Restaurant & Hotel Supplies, Education |
Pixel Pitch: |
Other, Other |
Specification: |
16*16 |
HS Code: |
8531200000 |
Resolution: |
16*16 |
Display Function: |
Video |
Brightness: |
10000-15000cd (VMS) |
Viewing Distance: |
300m Or More Than 300m |
Communication Way: |
RS232/RS485/RJ45/GPRS/3G/TCP/IP. |
Life Span: |
More Than 100000 Hours |
Waterproof Level: |
IP65 |
Working Temperature: |
-40℃~+75℃ |
Voltage: |
AC220V±18% / 50Hz±10% ;AC380V±18% / 50Hz±10% |
Application: |
Outdoor |
Type: |
LED |
Color: |
FULL COLOR, Single Color,Tri-color,Full Color (VMS) |
Panel Size: |
320*320, 320*320 |
Supplier Type: |
Original Manufacturer |
Media Available: |
Datasheet, Photo |
Use: |
Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Airport, Subway, Restaurant & Hotel Supplies, Education |
Pixel Pitch: |
Other, Other |
Specification: |
16*16 |
HS Code: |
8531200000 |
Resolution: |
16*16 |
Display Function: |
Video |
Brightness: |
10000-15000cd (VMS) |
Viewing Distance: |
300m Or More Than 300m |
Communication Way: |
RS232/RS485/RJ45/GPRS/3G/TCP/IP. |
Life Span: |
More Than 100000 Hours |
Waterproof Level: |
IP65 |
Working Temperature: |
-40℃~+75℃ |
Voltage: |
AC220V±18% / 50Hz±10% ;AC380V±18% / 50Hz±10% |

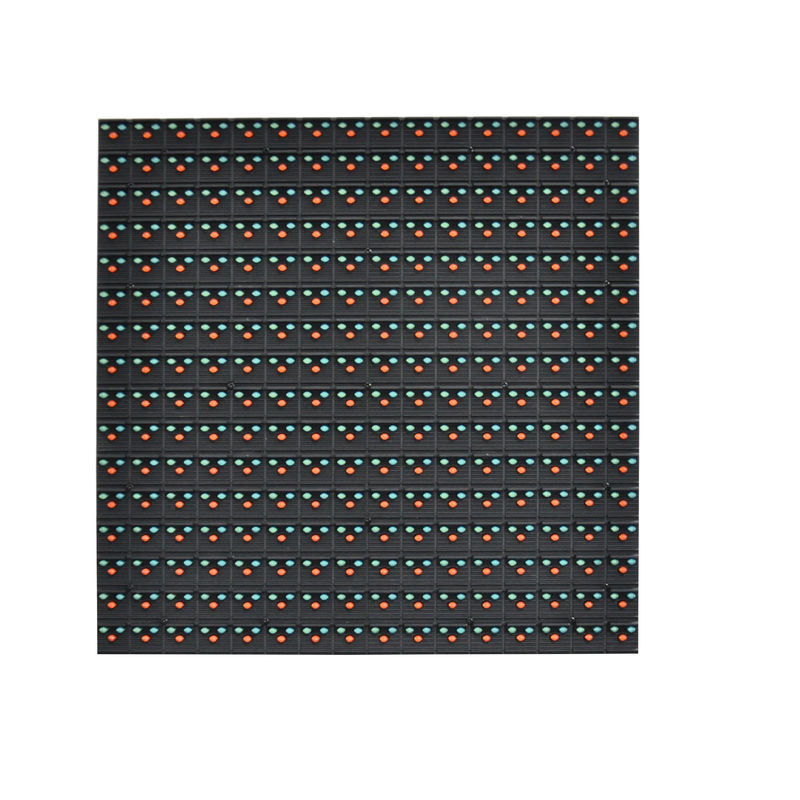

EN12966 ITS Traffic LED MODULE with Video Display Function and IP65 Waterproof Level
EN12966 Fixed installation P16,P20,P25,P31,25,P33.33 Outdoor Variable Message Sign on Column Traffic LED MODULES Led display LED traffic signs
PRODUCT FEATURE 1.display module having the versatility and interchangeability can be composed of different display colors and different sizes according to needs.
2.double-box structure, the formation of internal natural convection mode, so cabinets space temperature reaches equilibrium.
3. pixel module junction box and use the "O" ring, with good moisture anti-leakage performance.
4. module package uses advanced soft silicone, the elastic, strong anti-aging ability.
5. power supply, it is important IC device through the heat sink cooling, not only solve the heat, but also to ensure the performance is unstable due to mechanical failure when the cooling fan caused.
6. use special wide temperature range of the device, ensure the normal operation of the display at high or low temperatures.
7.The control system only with the IPC, and higher reliability.
8. use of sophisticated large-scale integrated chip high-speed serial transmission network alternative to discrete parallel transmission chip, reducing the complexity of the transmission display, reducing the complexity of the control system to improve the stability of the product.
9. using the network cable to transmit data to reduce the screen body inside the transmission cable, greatly improve the stability of the display.
10. using a common network data transmission technology, improve gradation display variable message signs, information boards enable a better display.
11. using a common network data transmission technology, in favor of compatibility and product upgrading. Help to improve the response speed of the system variable message signs.
Variable message signs Application
Generally speaking, variable message sign is used to communicate in realtime with motorists. variable message sign must address current conditions on the roadway by being dynamic,
accurate, timely and understandable. When there are multiple requests to post VMS messages simultaneously, messages will be prioritized in the following order .glare-LEDs' traffic variable message led display is widely used in highway, city road, highway tunnel road, displaying the road situations info, Traffic command department dispatches information, weather information and so on.
of importance:
1. Incident Management/Public Safety.
2. Congestion Management/Motorist Guidance.
3. Construction/Maintenance Activity.
4. Special Events.
5. Environmental.
6. Law Enforcement Message.
7. Public Service Campaign.
Features of Variable message signs:
Light source : High Power LEDs.
Housing: Aluminium profile, modular design principle in seawater-proof aluminium AlMg3 or stainless steel (V4A, 1.4571)
Protection class :P1, P2, P3, drainage and ventilation holes IP54
Temperature classes: T1 (-15 - +60°C) / T2 (-25 - +55°C) / T3 (-40 - +40°C)
Humidity range: 20 – 95% rel. humidity
Controller•Embedded controller designed for industrial temperature range : -40 to +85 °C •
Integrated fast access solid state data memory •
High speed picture interface using latest type of Dual port RAM and FPGA technology •
Number of colours : mono, bicoloured, 3, 5, 256 colours •Max. picture rate 20 frames/second
Interfaces •RS485/RS422 interfaces, interface for Profibus©, Profinet, Canbus, Ethernet IP, WLAN and future interfaces •
TCP/IP connection via RJ45 •digital inputs •digital and analogue sensors
Mounting options C-rails Pipe clamps Other constructions on request
Protocols FUTURITCOM 2 FUTURITCOM 2 via Profibus TLS 2002 / 2009 XDR/DAP NTCIP others on request
Optics The optical equipment fits tightly into the matrix. Contrast ratio up to 25, even at low sun position
Pixel pitch : (freely programmable Variable message signs) 16 / 20 / 25 / 31.25/33.33 mm
Variable message signs LED modules parameters
Variable message signs Cabinets Parameters
Variable message signs LED Displays Aging Test
Variable message signs LED Display Manufacturing Proces
Variable message signs Project cases on High way
Variable message signs Project case in Metro Station
Variable message signs Project cases in Toll Station
Q: What's the warranty of Variable message signs ?
A:We provide 1 year free warranty for any queality issue.
Q:What's the payment terms?
A:T/T or Western Union is OK. 30% as deposits money,the balance 70% you can pay us before shipping.
Q:What place and filed of this variable message sign is used widely?
A: Variable message signs is widely used in high way, tunnel,city street way,street,airport,ferry,metro station.
