Highway Gantry Traffic Display LED Module P20 P25 P16 with Waterproof Pixel Pitch

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 100 pieces

Price: Negotiable

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                Highway Gantry LED Module, P25 LED Module, Waterproof Pixel Pitch LED Module


Brightness:	12000 CD/m2	Brightness Control:	8 Level Auto-dimming By Sensor
Viewing Angle:	30°	Casing Material:	Steel,aluminum Available
Waterproof:	IP65	Power Input:	110/220VAC,60HZ/50HZ
Communication:	Rs232/Rs422;TCP/IP,GSM,RF	Pixel Pitch:	16mm/20mm/25mm/31.25mm/33.33mm

Brightness:	12000 CD/m2
Brightness Control:	8 Level Auto-dimming By Sensor
Viewing Angle:	30°
Casing Material:	Steel,aluminum Available
Waterproof:	IP65
Power Input:	110/220VAC,60HZ/50HZ
Communication:	Rs232/Rs422;TCP/IP,GSM,RF
Pixel Pitch:	16mm/20mm/25mm/31.25mm/33.33mm

Product Description

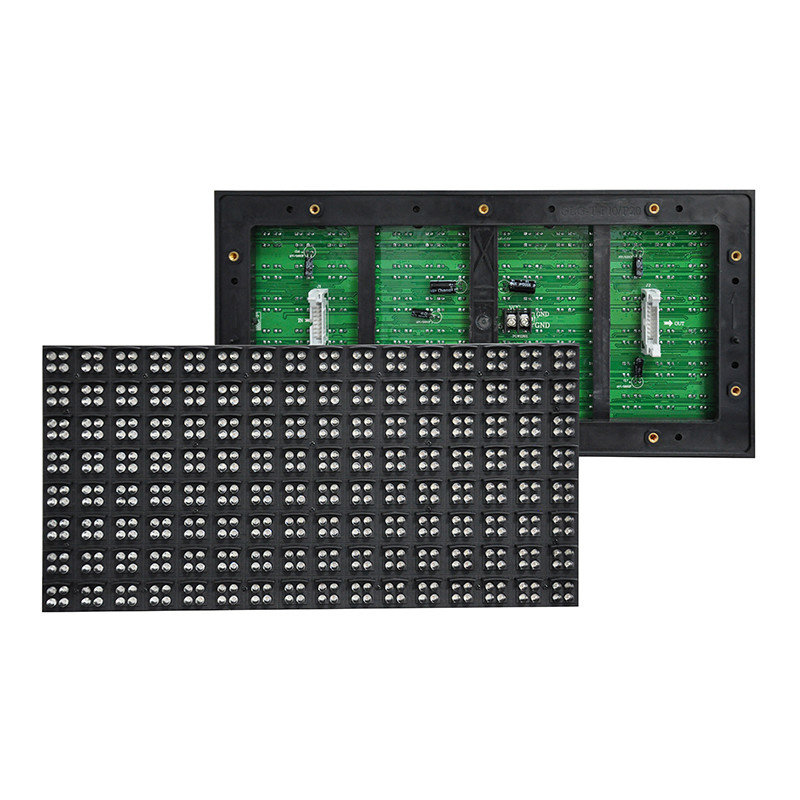

Highway Traffic VMS Led Display Module

Product Pictures:

Led Module Specifications:

Pixel Pitch (mm)	Module Size (mm)	Led Lamp beads combination	Led Package	Viewing Angle
P16	128*256	2Red or 2R1G or 1R1G1B	DIP Ø5	30°
P20	160*320	2Amber or 2R1G or 2R1G1B	DIP Ø5	30°
P25	200*200	2Amber or 2R1G or 2R1G1B	DIP Ø5	30°
P31.25	250*250	4Amber or 4R2G or 4R2G1B	DIP Ø5	30°
P33.33	133.3*266.6	4Amber or 4R2G or 4R2G1B	DIP Ø5	30°

Brand Name: Glare-led

Usage: Highway/ Express Led displays
Tube Chip Color: Monochrome or Tri-Color or Full Color
Display Function: Text / Graphic / video
Pixel Pitch: 16mm / 20mm / 25mm / 31.25mm / 33.33mm
Screen Dimension: Custom as required
Viewing Angle: 30°
Working Temperature: -20~60°C
Brightness: 12000cd/m²
Waterproof/Weatherproof: IP65
LEDs Life Expectancy: 100,000 hours(11+years)
Visibility: 10m~50m(Depends on the size)

Mass order in production:

Packing: wooden box Inside with the foam cotton
Delivery: 3~5 working days after payment( with regular size)
Warranty:1 year

Company Information:

Glare-LED Optoelectronic Co.,Ltd specializing in LED gas price display over 10 years.
We have provide excellent LED enginneering application to thousands of customers from more than 90 countries,such as United states,Germeny, South Korea, Britain, Spain,Russia,etc and so on.

RAQ:

1. Can we make any size of led display?
Please show us the size you want, according the led module sizes and cabinet sizes we have at present, we can provide you the displays extremely close to the size you asked. The best aspect ratio of LED display are W16:H9 or W4:H3

2,What if the displays is damaged during the shippment?
We are pleased to offer our convenient warranty policy.

3,How to install led display?
We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

4,How to order LED display?
Please tell me where the displays should be placed? indoor or outdoor? the size you want and the application.

5,How to ship?
Usually shipped by air or by sea.

6,How to payment?
You can transfer payment by TT, West union or L/C

7. Can you provide the finished solutions for exhibitions or do custom projects?

Yes, we has 10 years experiences in Led displays area and can do custom design as you ask.

CERTIFICATION:

THE EXHIBITION COMPANY:
