Factory Wholesale High Brightness DIP 346 P10 Outdoor LED Display Module
Product Overview
Glare-LED's MS series lens Frontside LED modules feature high water resistance, excellent luminous efficiency, and long service life. These modules deliver superior display performance with vibrant colors, high brightness, and excellent visibility at long distances. Ideal for outdoor traffic variable information screens and advertising displays.
Technical Specifications
| Pixel Pitch (mm) |
LEDs |
Density (dot/M2) |
Pixels of modules |
Module size (mm) |
LED lamp compositions |
Driving mode |
Brightness (cd/M2) |
Max Power (W) |
Scan Mode |
| P5 |
Lens |
4000 |
64*64 |
320*320 |
1R1G1B |
Constant current |
8000 |
240 |
1/8 |
| P6.67 |
Lens |
22478 |
48*48 |
320*320 |
1R1G1B |
Constant current |
8000 |
240 |
1/8 |
| P8 |
Lens |
15625 |
40*40 |
320*320 |
1R1G1B |
Constant current |
8000 |
240 |
1/5 |
| P10 |
Lens |
10000 |
32*32 |
320*320 |
1R1G1B |
Constant current |
8000 |
240 |
1/4 |

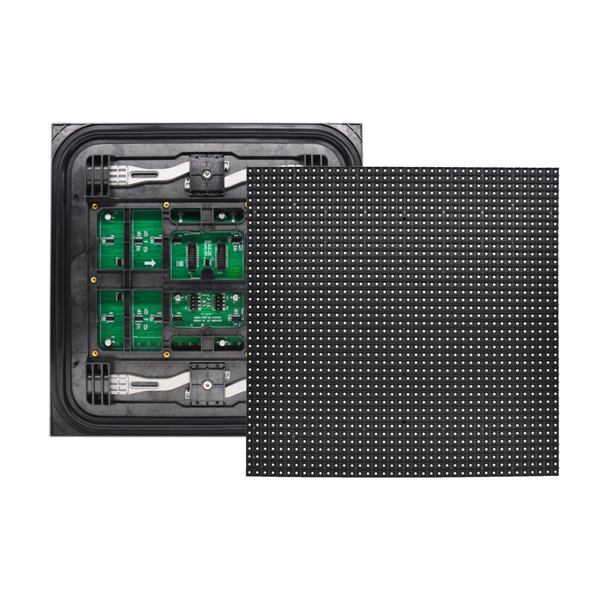

LED Module Details
The light source adopts surface-mounted LEDs on the top of the lens mold
Key Features
- Combines the product consistency of SMD LEDs with the focused light beam of DIP technology for superior performance
- Designed to avoid direct light on the LEDs, significantly extending product lifespan
- Energy-efficient design reduces power consumption while maintaining environmental sustainability
Frequently Asked Questions
What components are included with the gas price display?
Pixel tube cluster signs include the control card and power supply inside the cabinets, eliminating the need for an external control box.
What is the warranty policy for damaged LED price billboards?
We offer a comprehensive warranty policy for all our products.
How long do gas price signs typically last?
Our signs have an average lifespan of 6 years with proper maintenance.
Can you provide finished product solutions for exhibitions or bids?
Yes, with our 10 years of industry experience and dedicated R&D department, we can provide complete solutions.
Do you offer custom-sized digital boards?
While we offer many standard sizes, we can accommodate custom dimensions upon request.
Our Services
We provide turn-key, reliable, and cost-effective LED display solutions for various applications. Our LED signage is versatile enough for:
- Medical practices attracting new patients
- Movie theaters displaying showtimes
- Religious organizations extending their ministry
Whatever your signage needs, we can help you find the perfect LED solution to increase your visibility and impact.
